PACS Integration for Reporting Tools: What Radiology Managers Need to Know

PACS integration is the biggest anxiety point when adopting new radiology reporting tools. Here is what the process actually involves, what questions to ask, and what timeline to expect.

Ask any radiology manager what keeps them from evaluating new reporting tools, and the answer is almost always the same: PACS integration.

The concern is understandable. PACS is the backbone of the radiology workflow. Anything that disrupts PACS connectivity disrupts patient care. And most radiology managers have at least one horror story about a vendor integration that took six months and still had issues after go-live.

But this anxiety is often based on outdated assumptions. The integration process for modern, web-based reporting tools is far simpler than what most managers expect. This guide covers what PACS integration actually involves, what questions to ask vendors, and what timeline is realistic.

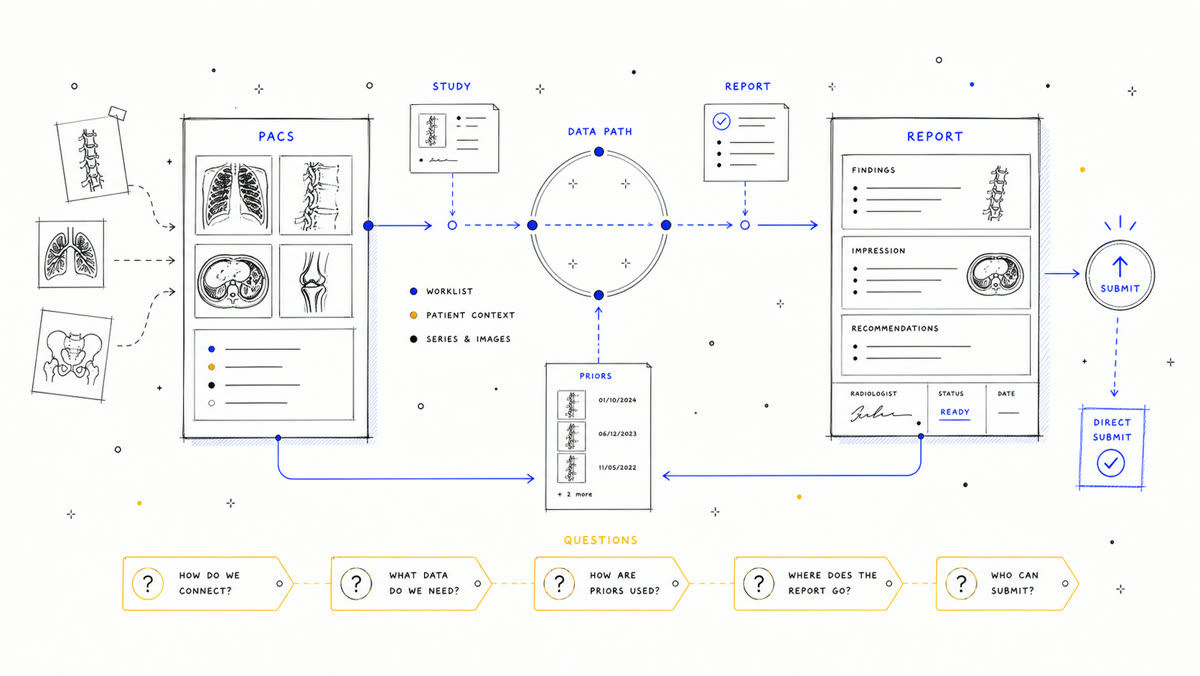

What PACS integration means for a reporting tool

When we talk about PACS integration for a radiology reporting tool, we are talking about a few specific capabilities:

Worklist synchronization. Pulling the worklist from PACS so radiologists see their assigned studies inside the reporting interface rather than switching between windows.

Study context passing. Receiving study metadata (patient demographics, modality, body part, accession number, referring physician) when a radiologist opens a study. This drives template selection, comparison study lookup, and report routing.

Report submission. Flowing the finalized report back into PACS and associating it with the correct study, typically via HL7 messaging or direct API integration.

Status updates. Updating study status in PACS (assigned, in progress, preliminary, final) as reports move through the workflow.

That is the complete list. PACS integration for a reporting tool does not require modifying PACS configuration or altering existing workflows for other users. It is a data exchange layer, not a system replacement.

The two integration models

PACS integration generally follows one of two models, and understanding which applies to your environment determines your timeline and complexity.

Direct API integration (web-based PACS)

Modern, web-based PACS platforms like eRAD and RamSoft expose APIs that reporting tools can connect to directly. The integration involves:

  1. API credential provisioning. The PACS vendor provides API access to the reporting tool vendor.
  2. Endpoint configuration. The reporting tool is configured to pull worklists and push reports through the API.
  3. Field mapping. Study metadata fields are mapped between the two systems (accession number formats, status codes, report formats).
  4. Testing. A test environment is configured and a set of test studies are run through the full workflow: worklist pull, study open, report creation, report submission, status update.

For web-based PACS, this process is well-defined and repeatable. At Skia, we have standardized our integration with eRAD and RamSoft to the point where the full process, from kickoff to production, takes 48 hours.

That number surprises most radiology managers. But web-based PACS APIs are designed for exactly this kind of connectivity, and when both sides have done the integration before, the process is configuration rather than custom development.

HL7/DICOM interface integration (legacy PACS)

Older, on-premise PACS systems that do not expose modern APIs require integration through HL7 messaging interfaces or DICOM worklist management. This model involves:

  1. Interface engine configuration. An HL7 interface (often through Mirth Connect or a similar engine) is configured to route messages between PACS and the reporting tool.
  2. Message mapping. HL7 ORM (order) and ORU (result) messages are mapped to ensure data flows correctly in both directions.
  3. Network configuration. On-premise systems may require VPN tunnels or dedicated network paths to communicate with cloud-based reporting tools.
  4. Testing and validation. More extensive testing is needed because HL7 implementations vary significantly between PACS vendors and even between versions of the same PACS.

This model typically takes 2 to 4 weeks and requires involvement from your IT team for network configuration. It is more complex but still far less disruptive than most managers expect.

The questions to ask your reporting tool vendor

Before committing to any reporting platform, radiology managers should ask these specific questions about PACS integration:

“Have you integrated with our specific PACS before?”

This is the single most important question. A vendor that has already completed integration with your PACS version has solved the hard problems. Ask for references from sites running the same PACS.

“What is the realistic timeline from kickoff to production?”

Get a specific number, not a range. Ask what that timeline assumes and what happens if those assumptions do not hold.

“What does our IT team need to provide?”

Some integrations require nothing beyond API credentials. Others need firewall rules, VPN configuration, or interface engine access. Know the scope before you commit.

“What happens to the existing PACS workflow during integration?”

The answer should be “nothing.” A well-designed integration is additive, not disruptive. Other users should see zero changes.

“How are report formatting and delivery handled?”

Ask to see sample reports as they appear inside PACS after submission. Verify that formatting, section headers, and special characters render correctly for your referring physicians.

“What monitoring is in place after go-live?”

Network changes, PACS updates, and configuration drift can break connectivity. Ask what automated monitoring detects and alerts on integration failures.

“Does the reporting tool store patient data?”

Some reporting tools cache study data locally or in the cloud. Others process data in memory and clear it on submission. At Skia, our architecture processes patient data entirely in memory with zero persistent storage, clearing everything the moment a report is submitted.

Common integration pitfalls and how to avoid them

Starting integration before the reporting workflow is configured. Configure the reporting tool first: templates, user accounts, routing rules, and QA settings. Then integrate with PACS. Trying to do both simultaneously creates confusion about whether issues are integration problems or configuration problems.

Testing only with simple cases. Your test plan should include addended reports, stat studies, multi-modality studies, and studies with prior comparisons. These edge cases are where integration issues surface.

Not involving radiologists in testing. IT can validate that data flows correctly, but only a radiologist can confirm that the workflow feels right. Include at least two radiologists in your testing phase before going live.

Going live across the entire practice at once. Start with a pilot group of 3 to 5 radiologists for the first week. This limits the blast radius of any issues and gives you a feedback loop before full rollout.

Assuming the PACS vendor will be responsive. Factor in potential delays on their side when planning your timeline. Your reporting tool vendor should be willing to own the communication with the PACS vendor on your behalf.

What a realistic integration timeline looks like

For web-based PACS (eRAD, RamSoft, and similar platforms):

  • Day 1: Kickoff call. API credentials provisioned. Reporting tool configured.
  • Day 2: Integration configured and tested in staging environment.
  • Day 2 to 3: Pilot group begins live reporting.
  • Week 1 to 2: Full rollout after pilot validation.

For legacy on-premise PACS:

  • Week 1: Kickoff and requirements gathering. Network and interface configuration begins.
  • Week 2: HL7 message mapping and initial testing.
  • Week 3: End-to-end testing with radiologist involvement.
  • Week 3 to 4: Pilot group goes live. Full rollout follows.

These timelines assume both vendors are engaged and responsive. Add buffer if your PACS vendor has a history of slow turnaround on integration requests.

The bottom line

PACS integration is the most common reason radiology managers delay adopting better reporting tools. But the actual process, especially for modern web-based PACS, is far simpler and faster than most expect. The key is choosing a reporting platform that has already proven integration with your specific PACS, asking the right questions up front, and planning a phased rollout.

If PACS integration anxiety is the reason your team is still dealing with preventable reporting errors, slow turnaround times, or inconsistent report quality, it may be time to revisit that assumption. The integration is measured in days, not months. The improvements start immediately.
